Steel · Drawing-specific
Capacitor formation bars
Drawing-led steel bars for capacitor formation and clamping, coordinating machining, hole positions, straightness and protective packaging.
Application & engineeringAPPLICATION & SUPPORT
Production tooling & test support
Positioning, handling, formation and test requirements reviewed against your existing production workflow.
SCOPE
Products & support
Steel · FR4 · G10
Fixtures, carriers & G10 racks
Dedicated tooling developed around process and equipment interfaces for positioning and handling during cleaning, assembly, aging and testing.
Application & engineeringHIPS · PP · Program-specific

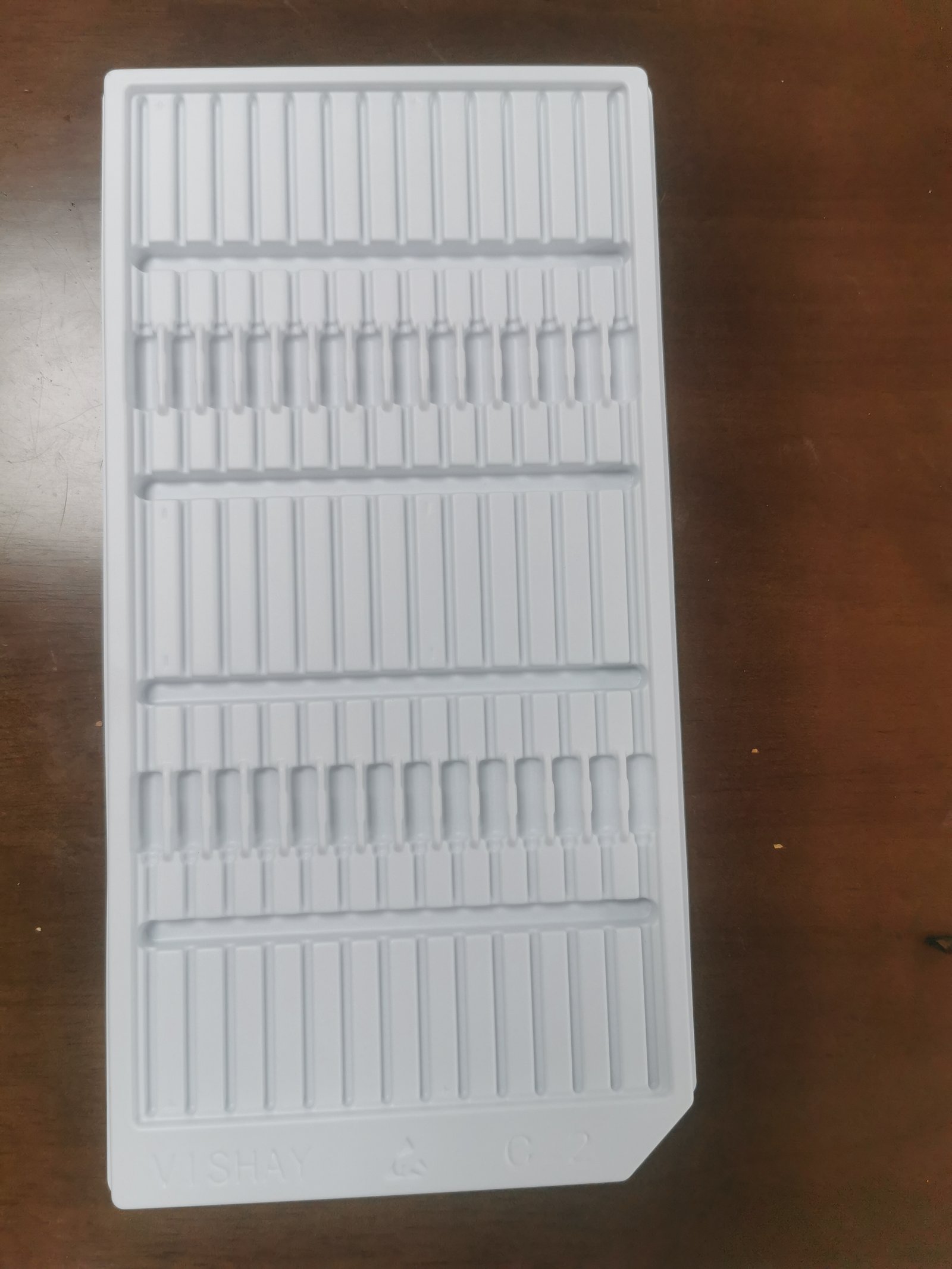

Trays & handling packaging
Trays and packaging evaluated for part placement, process handling and shipping protection, including access and stacking.
Application & engineeringWORKFLOW
Understand the application, then agree the approach.
- 01
Requirements
Drawing revision, materials, conditions and critical interfaces.
- 02
Engineering & samples
Process review, open questions and a sample plan.
- 03
Inspection & records
Dimensions, materials and agreed inspection records.
- 04
Delivery & changes
Packaging, lot traceability and repeat-supply communication.
START A PROJECT
Your drawing. Our next conversation.
Materials, geometry, conditions or sample needs: a practical starting point for engineering review.
